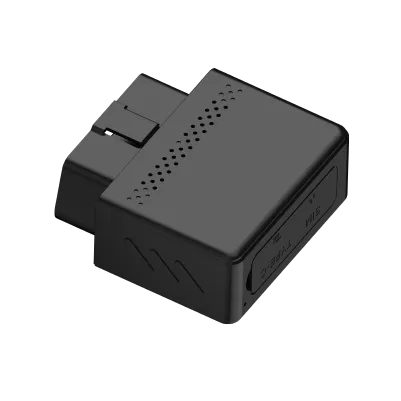

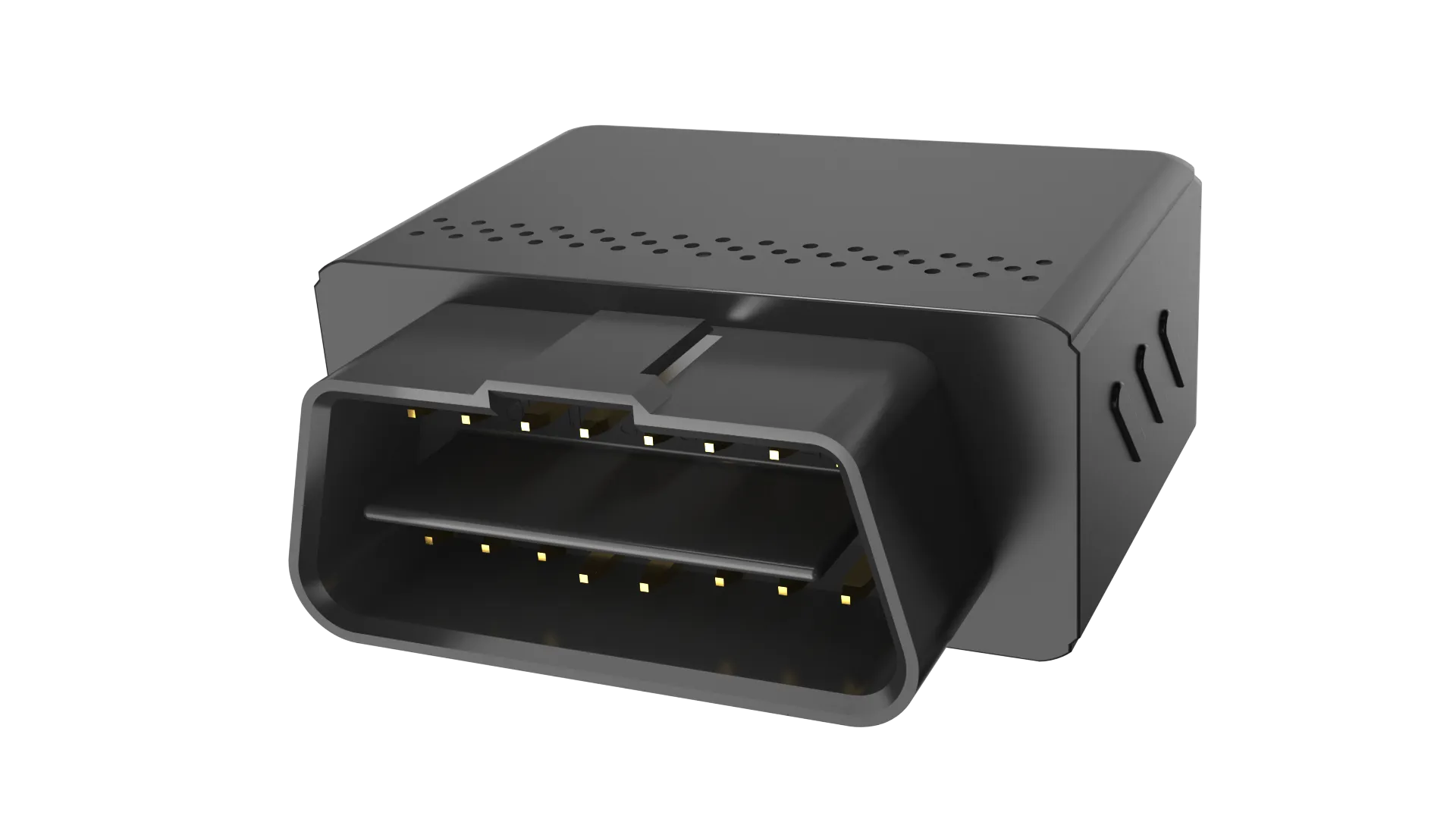

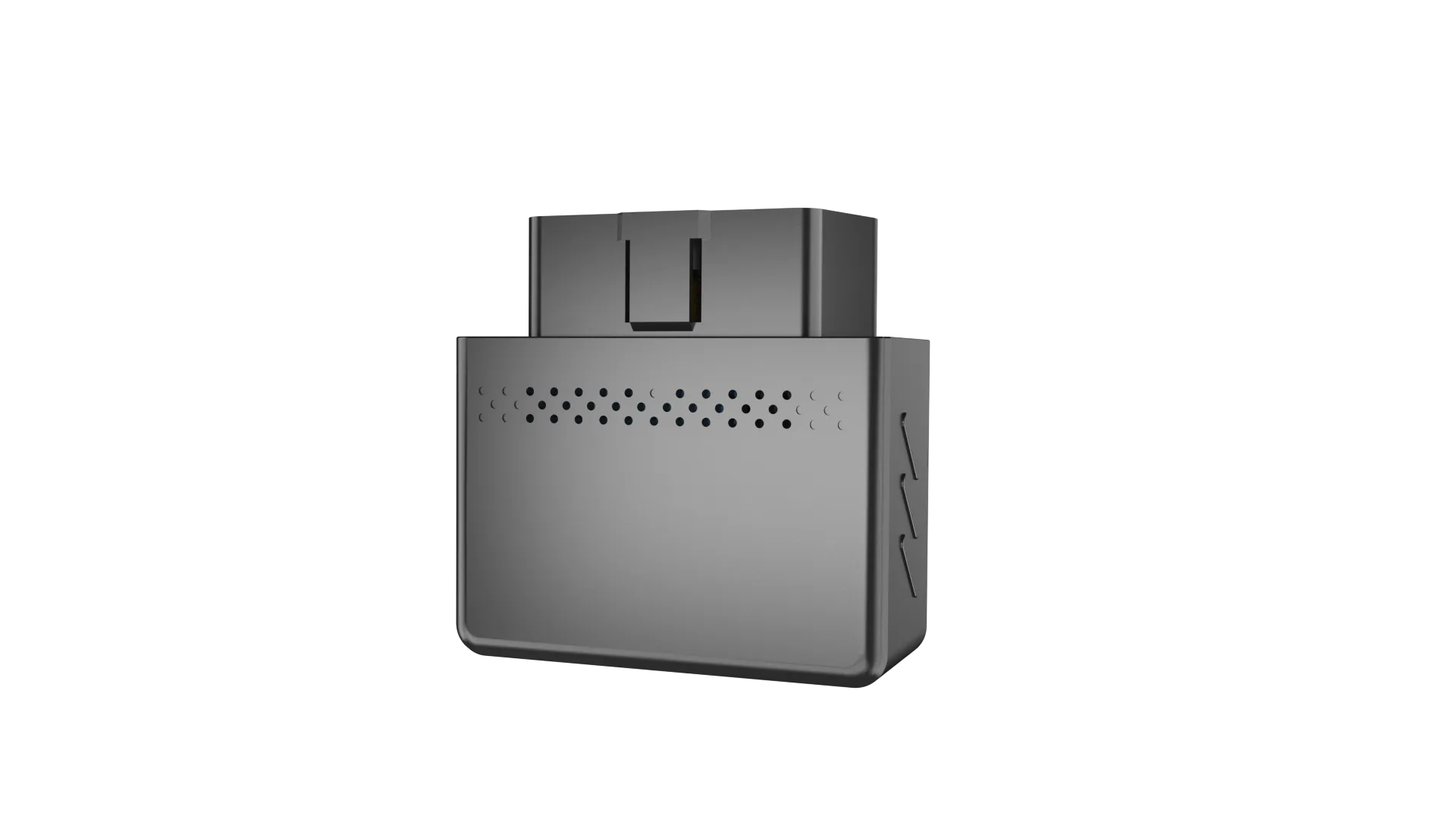

Introducing the Standard Mini OBD with Remote Listen-in, a cutting-edge 4G OBDII tracker tailored specifically for vehicle use. Its sleek, compact design and OBD port compatibility make installation a breeze in virtually any passenger car, making it an optimal choice for fleet management needs.
With LTE connectivity and GSM fallback, rest assured of a stable connection in nearly any circumstance. Plus, the advanced GPS BDS positioning system ensures precise location tracking, providing invaluable insights into your fleet's whereabouts, destinations, and speed.
Key Features:
- LTE & GSM Network: Seamless communication via 4G LTE networks with reliable 2G GSM fallback.
- Effortless Installation: Plug-and-play convenience; no need for professional installation.
- GPS & BDS Positioning: Dual positioning systems ensure accurate location data on the cloud platform.
- Driving Behavior Analysis (Basic): Stay informed with alerts for various risky driving behaviors.
- Remote Listen-in: discreet microphone enables remote monitoring and recording of ambient sounds.
- Multiple Alerts: Instant notifications for abnormal events like vehicle movement, speeding, and geo-fence breaches.
Empower your fleet management efforts with unparalleled tracking accuracy and comprehensive monitoring capabilities, all packed into one compact device.
Specifications
GNSS:
- Positioning system: GPS/BDS
- Positioning accuracy: ＜2.5m CEP
- Tracking sensitivity: -165 dBm
- Acquisition sensitivity: -148 dBm (cold) /-163 dBm (hot)
- TTFF (open sky): Avg. hot start ≤1sec, Avg. cold start ≤32sec
Cellular:
- Communication network: LTE Cat 1 GSM
- Frequency:
- LTE FDD: B1/B3/B7/B8/B20/B28
- LTE TDD: B34/B38/B39/B40/B41
- GSM: 850/900/1800/1900MHz
Power:
- Battery: 50mAh industrial-grade LiCo battery
- Input voltage: 9-36VDC
Interface:
- LED indication: GNSS (Blue), Cellular (Green)
- Connector: OBDII port
- SIM: Nano-SIM
- USB: 1 x USB Type-C for configuration
- Data storage: 16 16MB
Physical specification:
- Dimensions: 51.0 x 50.0 x 22.0mm
- Weight: 42g
Operating environment:
- Operating temperature: -20°C to 70°C
- Operating humidity: 5%～95%, non-condensing
Feature:
- Voice monitoring range: ≤5 meters
- Sensors: Accelerometer
- Ignition detection: External Power Voltage
- Scenarios: Vehicle movement alert, Speeding alert, Geo-fence, Voice-monitoring, Vehicle battery detection, Power supply disconnection
- Driving behavior analysis: Harsh acceleration, Harsh braking, Harsh cornering, Collision
