This unit can be activated manually with (remote switch or ELT switch) or automatically (the G-switch detects a 2.3G or greater impact). Once activated, the ELT 345 transmits a 406 MHz signal with the beacon's unique registration information and embedded GPS coordinates to the closest search and rescue agency via the Cospas-Sarsat satellite system. The beacon also transmits a 121.5 MHz homing signal to assist search and rescue to pinpoint the aircraft's GPS location.

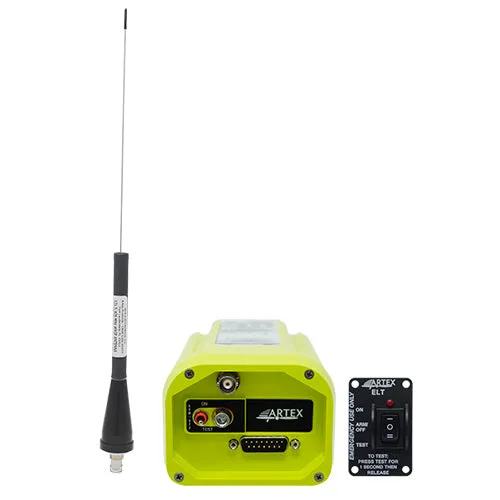

The ELT 345 provides a quick-and-easy retrofit opportunity with flexible installation options. The ELT utilizes the same RF output using only one coax cable to transmit both 406 MHz and 121.5 MHz signals through the compact 15-inch whip antenna. The ELT's built-in navigational interface does not require aircraft power to operatewhich results in lower installation costsand the stainless steel mounting bracket supplied with the unit has a multiple hole mounting pattern to accommodate legacy footprints.
FAA TSO C126b approved.
Note: All units come programmed as 9600 baud rate. If NMEA 4800 is needed, please select the International / Custom and complete your configuration details.
Dimensions: 6X6X20
