- 【Parameter】DROK DC to DC converter input voltage range is DC 9V-36V (9V 12V 18V 24V 36V); output voltage is 12V; output current is 5A; output power is 60W.

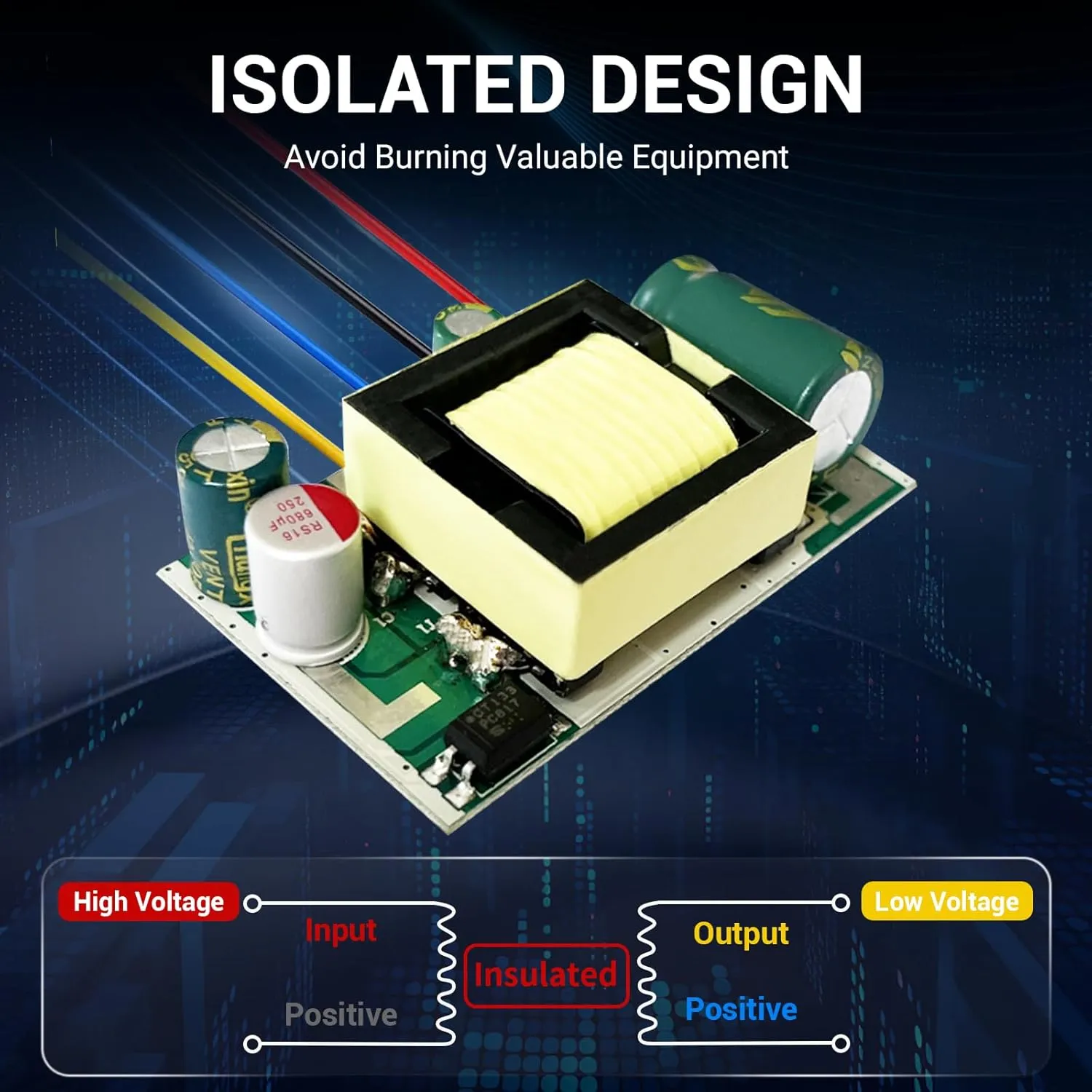

- 【Isolated Design】 The inputs and outputs wiring of DROK buck boost converter are isolated from each other to avoid burning valuable equipment.

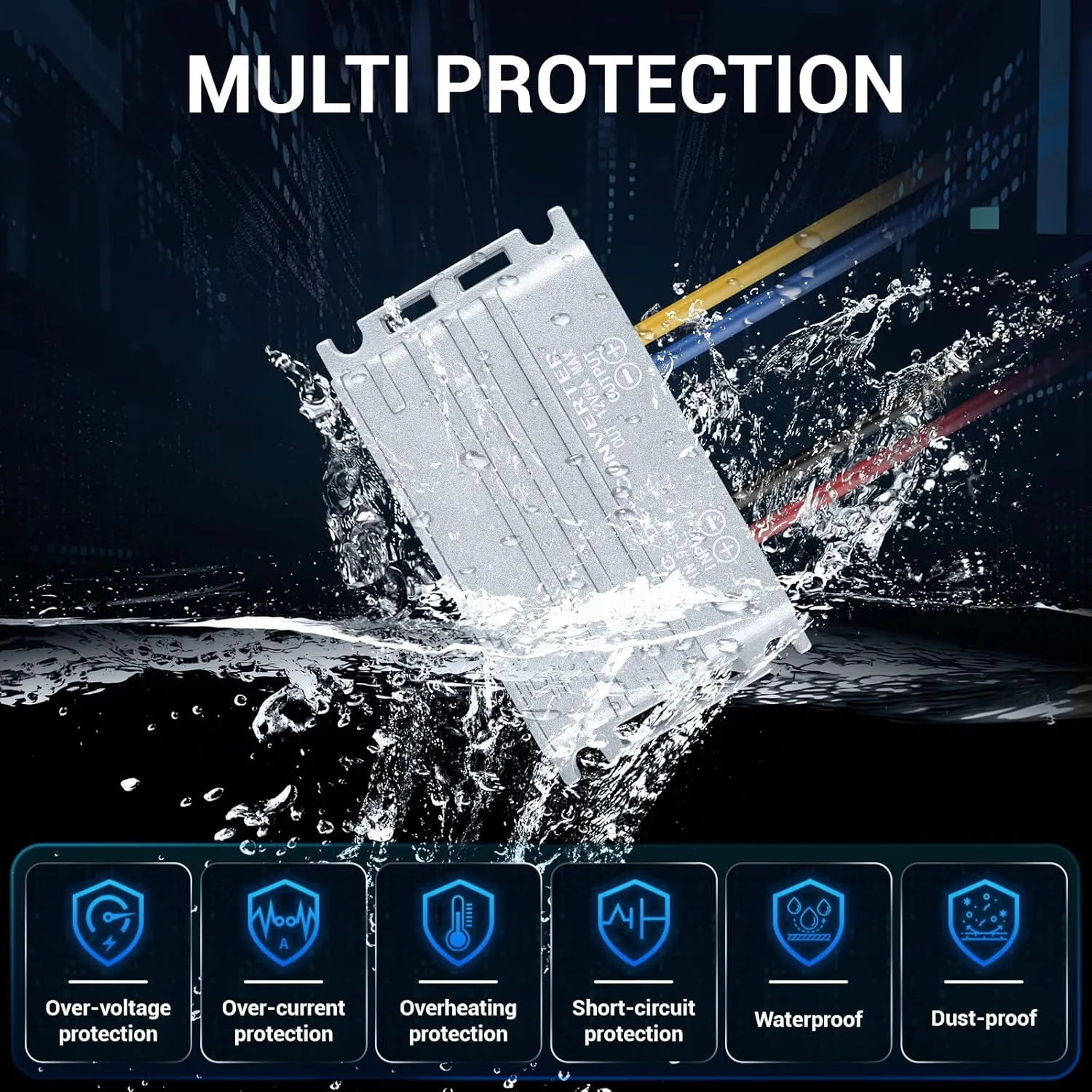

- 【Protection】Over-current protection, overheating protection, short-circuit protection, waterproof, dust-proof, moisture-proof, shock-proof.
- 【Efficient】 With high conversion efficiency up to 95%, this DROK buck converter is low heat generated, stable and safe.
- 【Multifunctional】DROK DC voltage regulator 12V can be use for any DC devices that are fit for the voltage range, such as GPS navigator for golf cart, car, RV, audio, LED display, motor, speaker, acoustics, electric fan, toy cars, air conditioning, solar panel, etc.

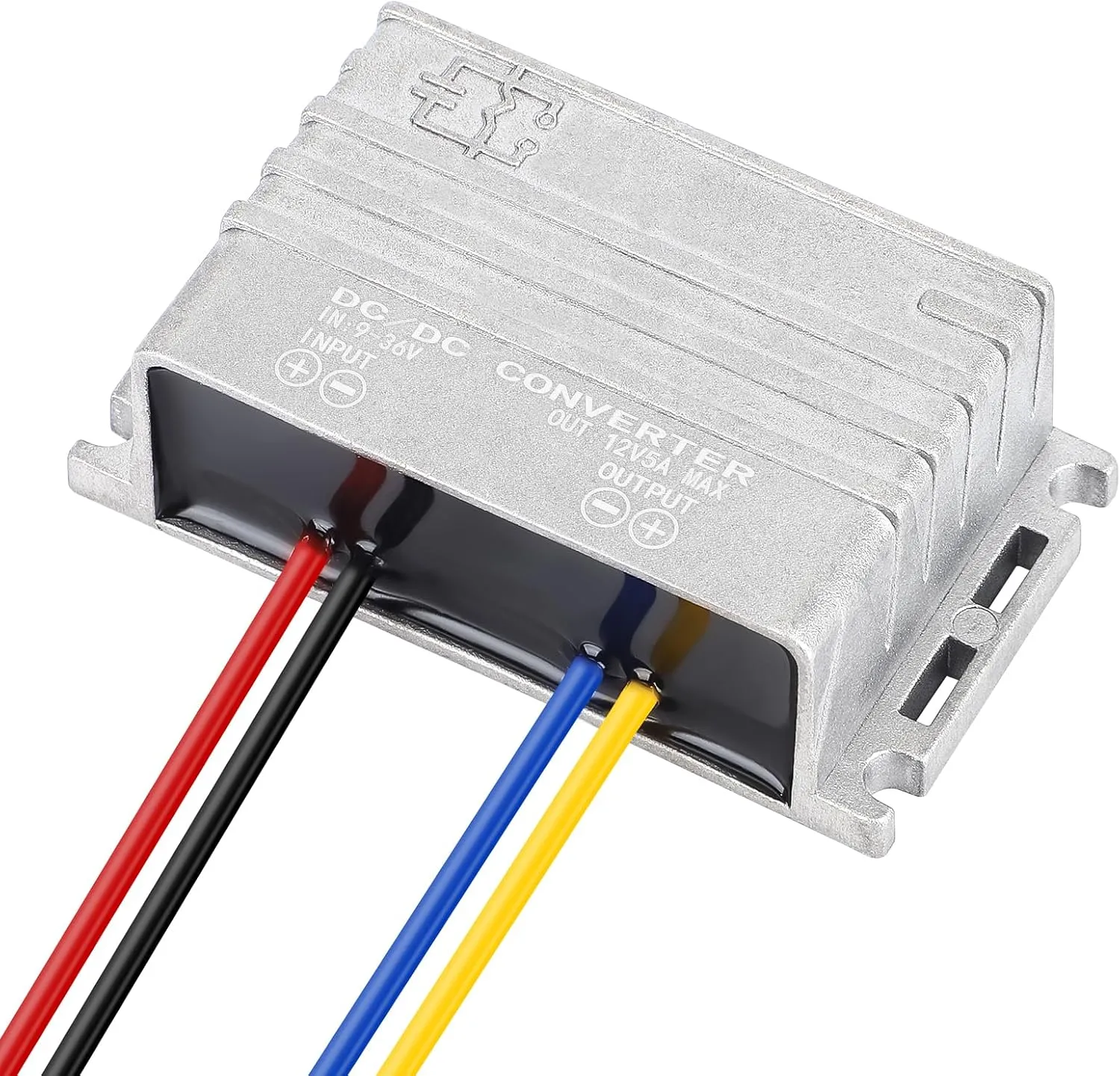

DROK DC to DC 9-36V to 12V Buck Boost Converter
Technical Specification:
Input Voltage: DC 9V-36V (9V 12V 24V 36V)
Output Voltage: DC 12V
Output Current: 5A
Output Power: 60W
Conversion Efficiency:>90%
No Load Voltage Range: Set voltage ±2%
Load Regulation: ±3%
Quiescent Power Dissipation: <＜20mA
Operating Temperature: -25~65℃
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-voltage Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: Yes
Dimension: 2.83*1.57*0.87 inch
Note:

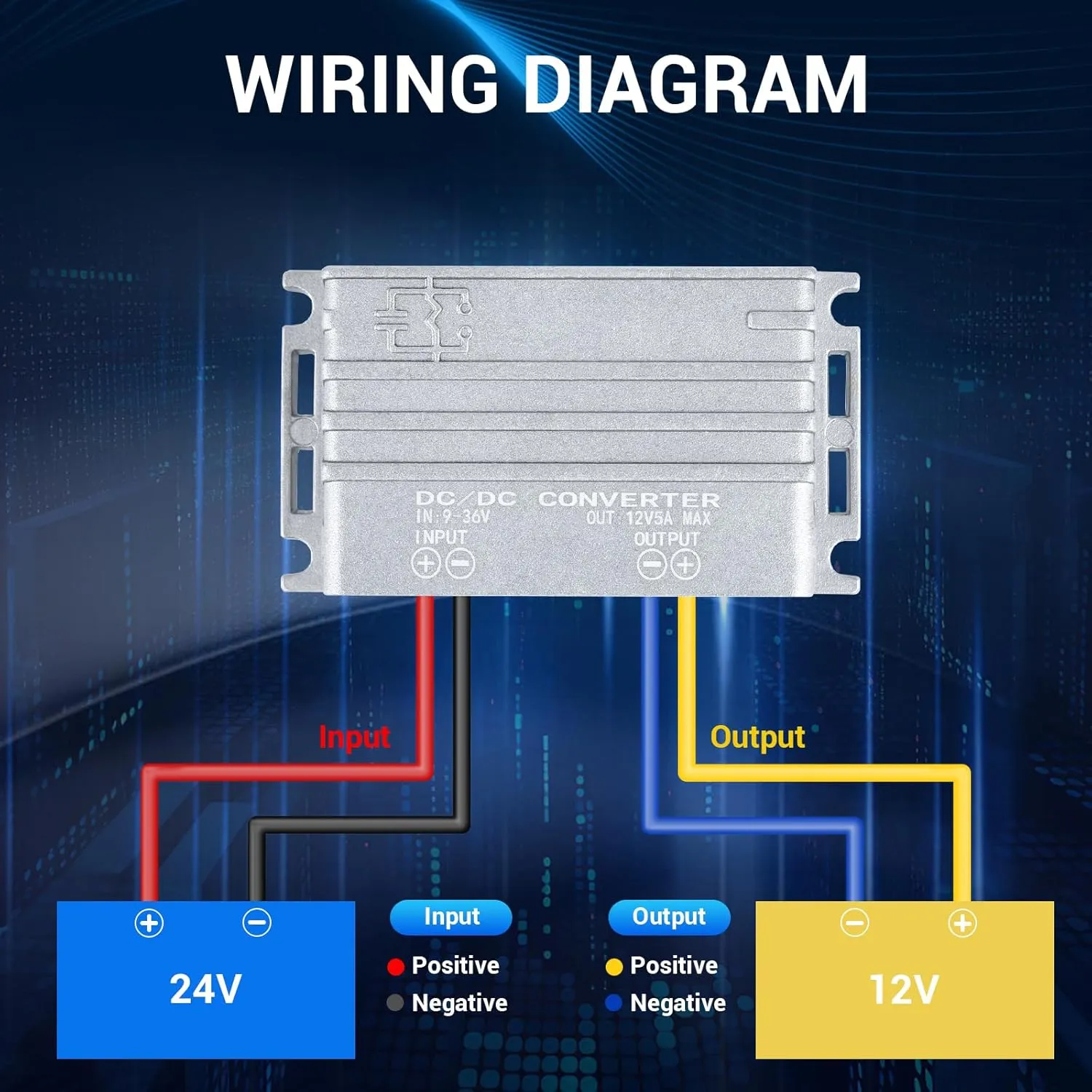

1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x DC to DC Converter
