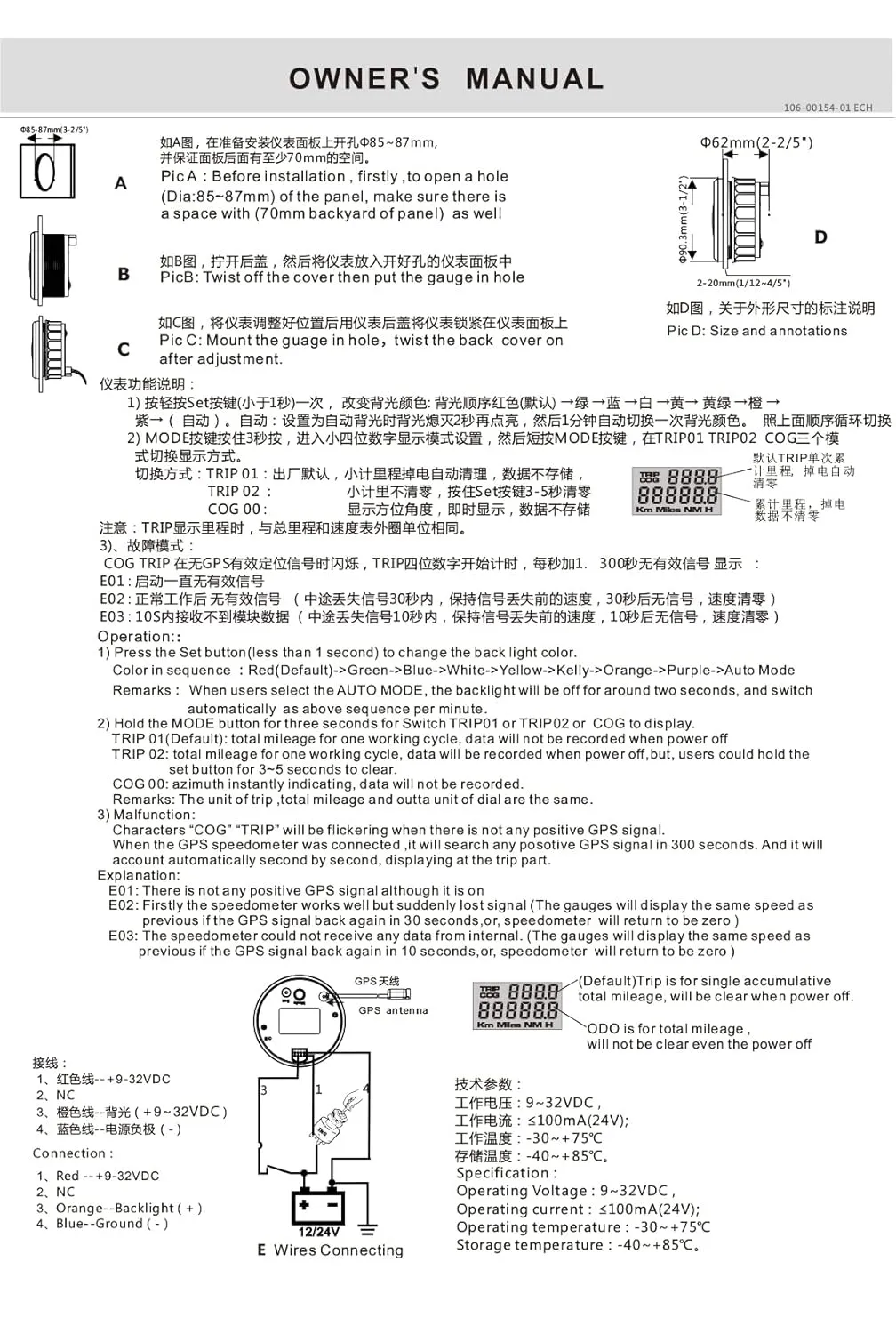

- Cut an 85mm (3 3/8") hole in the panel and allow a clearance of 70mm (2 3/4”) behind the panel to fit the gauge. Put the gauge in the hole. Using M4 nut and C type bracket to seal up the gauge.

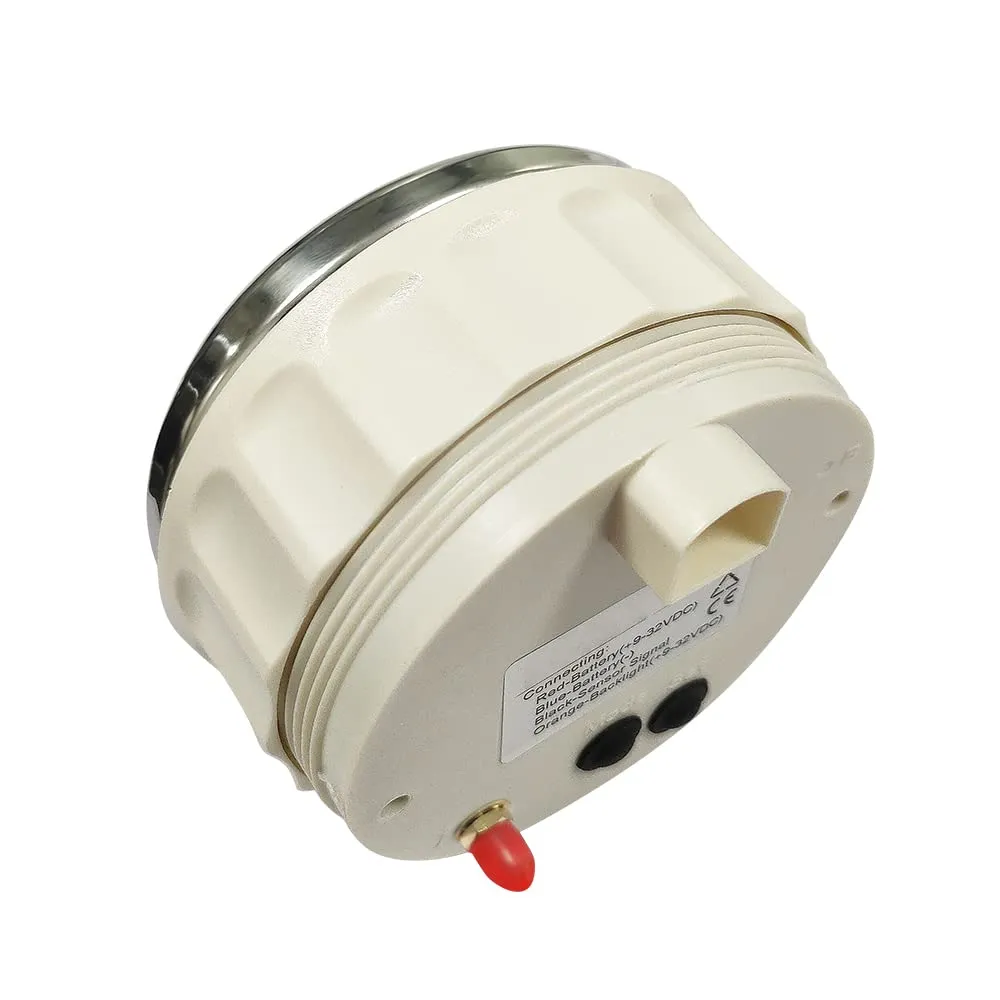

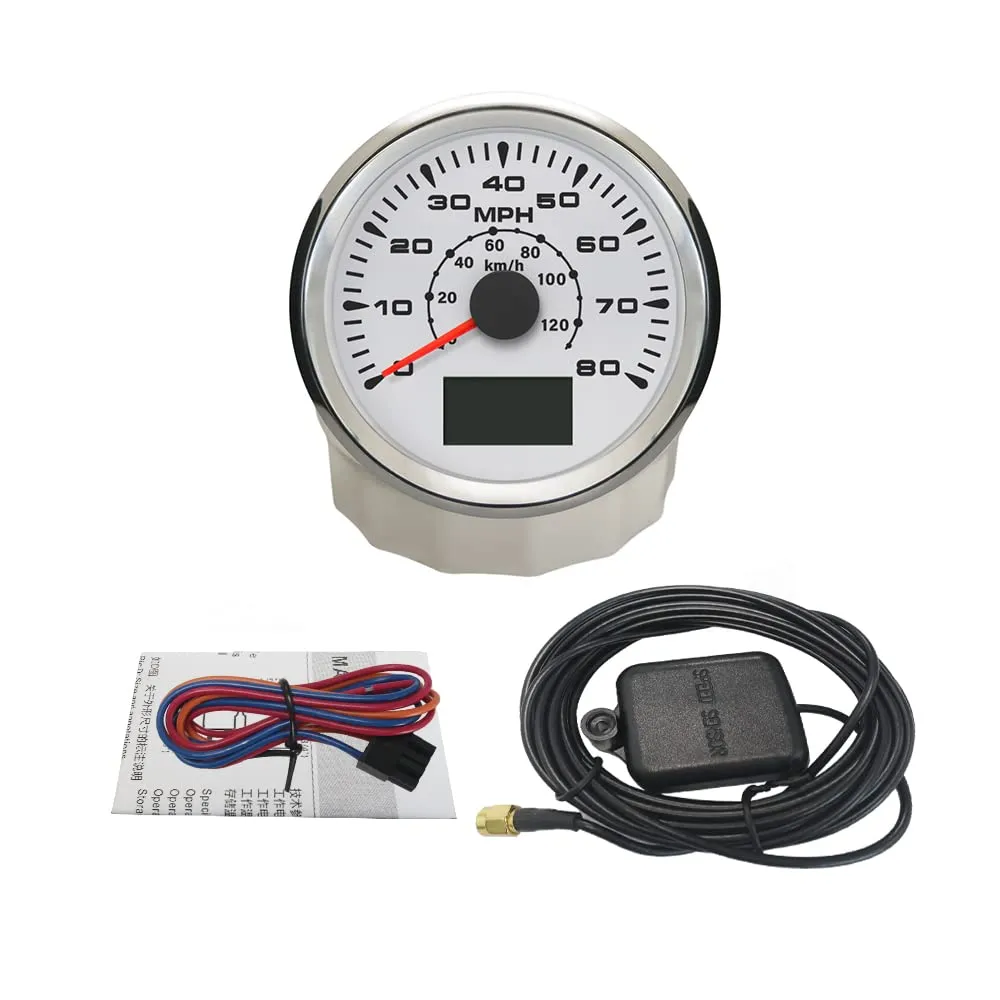

- For the GPS antenna, you should securely fasten it in the flat position, black side upwards, preferably outside (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. And do not cut cable.

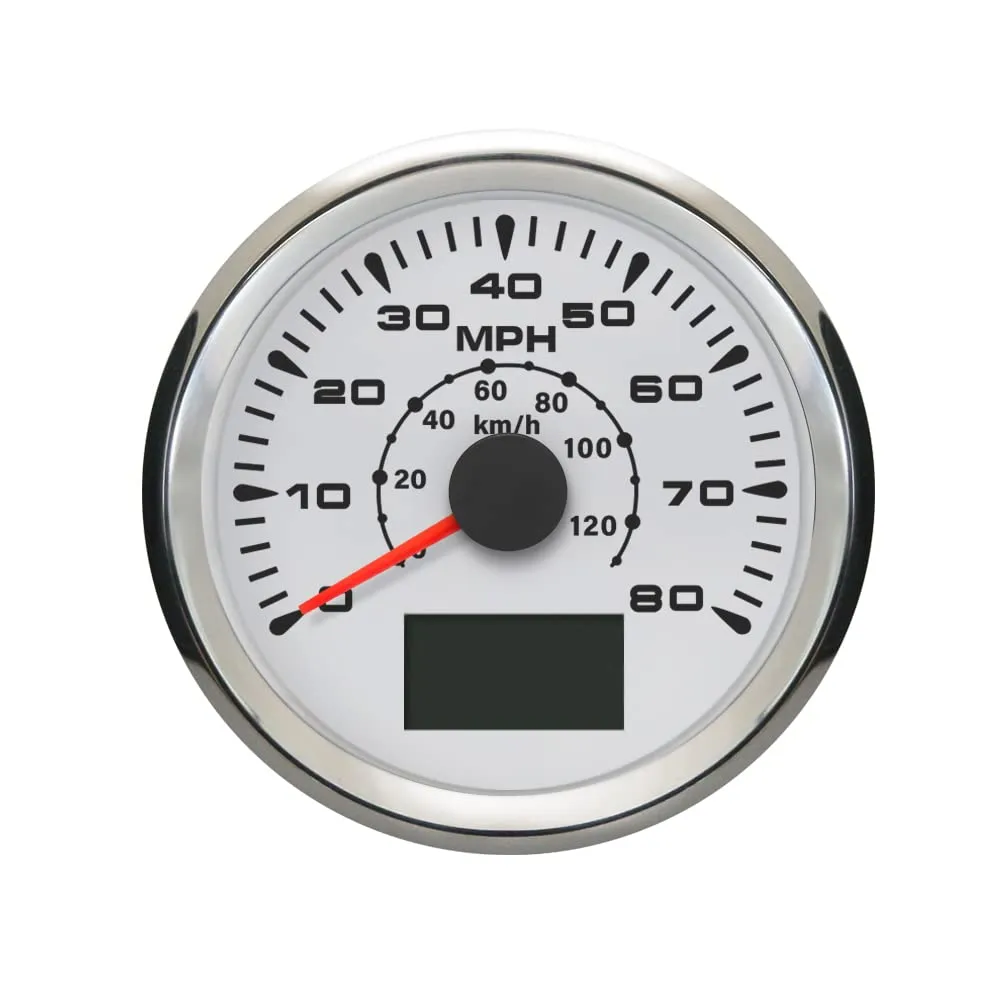

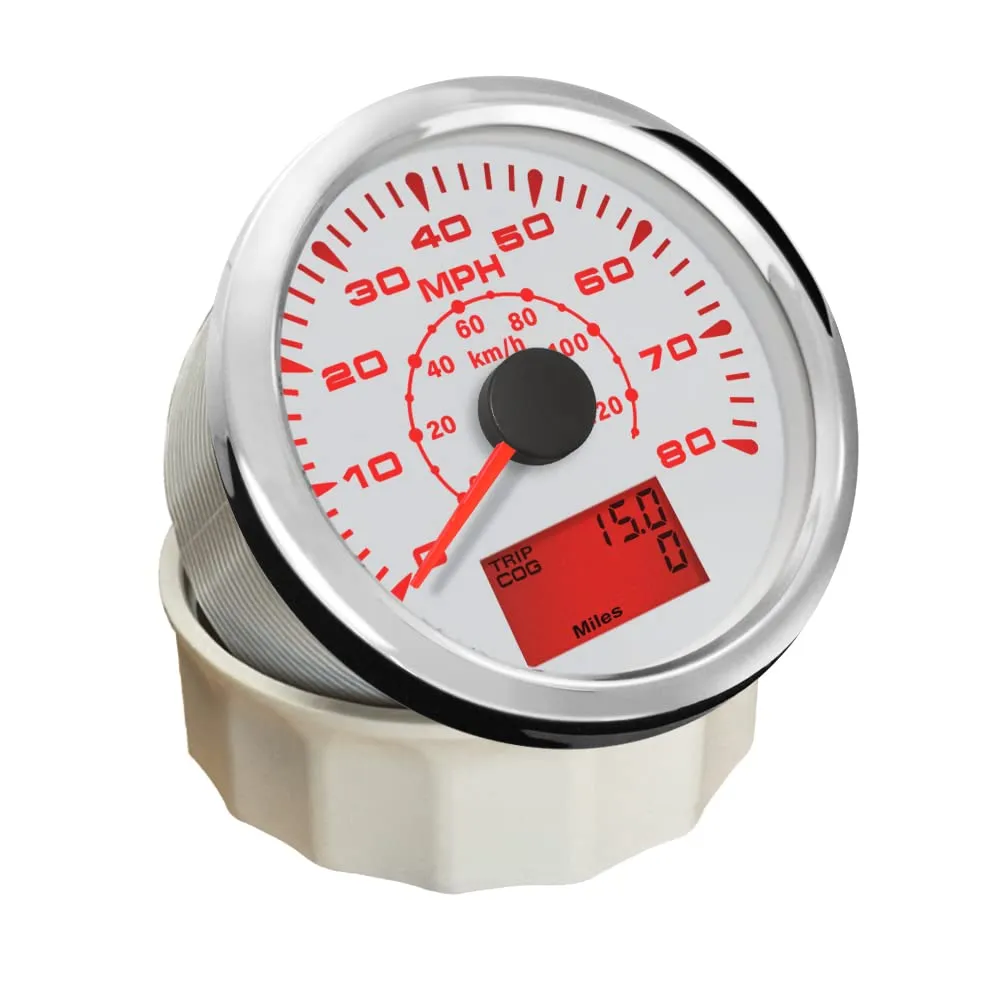

- It shows Current Speed, TRIP/COG(choose one), ODO(cannot be reset). If you need other color faceplate, pls. search for ASIN B07KNR2ZFT or B07KNR7NR7

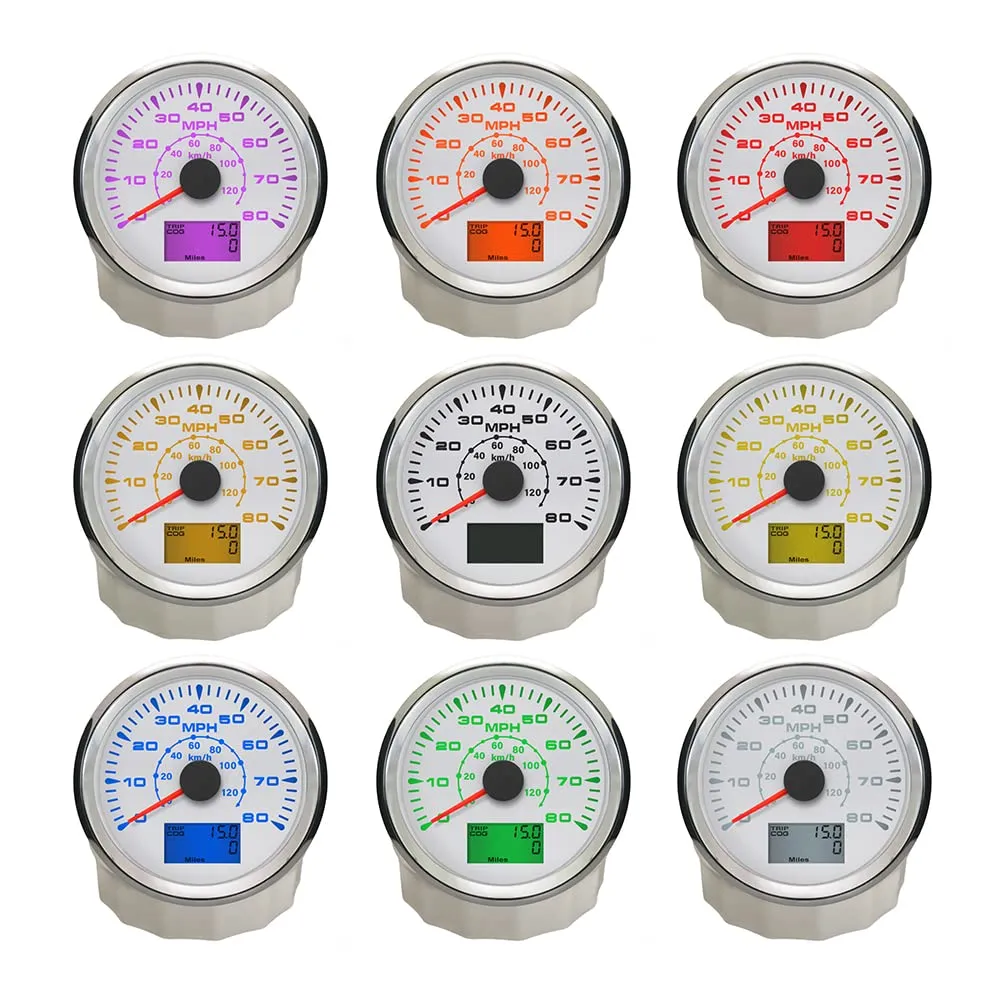

- Backlight: Red Green Blue White Yellow Orange Purple Light Green or automatic
- 9-32VDC(12VDC/24VDC) Working Voltage, 100% Waterproof and anti-fogging protection
