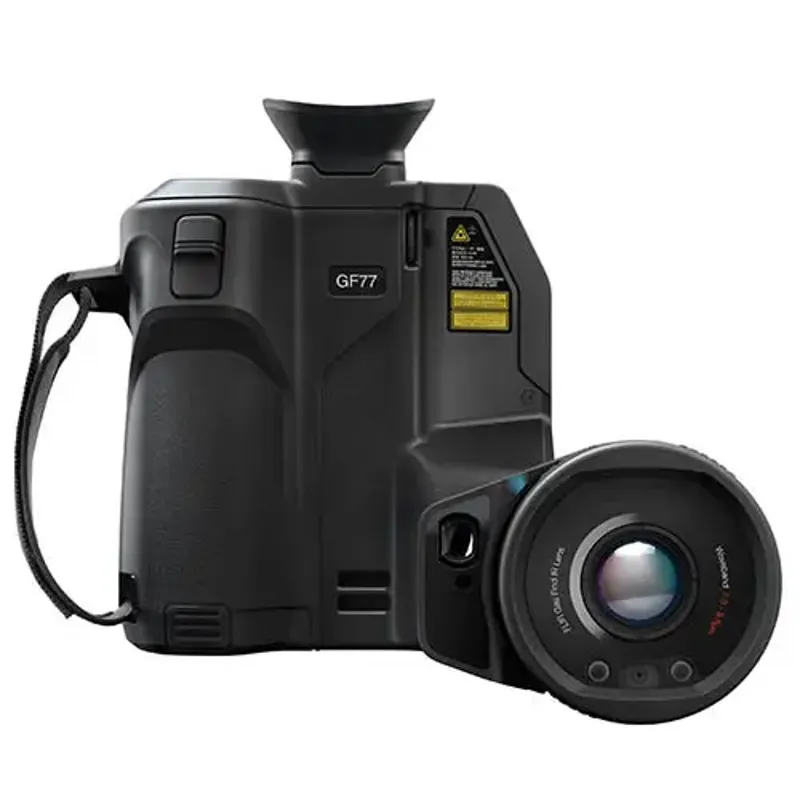

The Teledyne FLIR GF77-25-LR-HR-6-LR Thermal Imaging Camera is an advanced uncooled optical gas imaging solution equipped with interchangeable low-range (25° and 6°) and high-range (25°) lenses. Designed for industrial gas detection and thermal inspections, it can detect methane (CH4), sulfur hexafluoride (SF6), ethylene (C2H4), ammonia (NH3), and other emissions across varying spectrums. With a 320 x 240 IR resolution and 30 Hz refresh rate, this camera delivers real-time analysis for professionals working in utility, oil and gas, food production, and emergency response sectors.

Its compact and rugged design, based on the award-winning T-Series platform, includes a 4-inch touchscreen LCD and a rotating optical block for maximum usability. The GF77 enables radiometric temperature measurement from -20°C to 500°C with high accuracy, and it supports a full range of features including GPS tagging, Wi-Fi connectivity, high-sensitivity mode, and laser-assisted autofocus.

What's Included:

• 1 - Thermal Imaging Camera with Industrial Gas Detection, 320 x 240, 30 Hz
• 1 - 25° Low-Range Lens
• 1 - 6° Low-Range Lens
• 1 - 25° High-Range Lens
• 1 - Power Supply for Battery Charger
• 1 - Power Supply 15 W/3 A
• 1 - Printed Documentation
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI and PD Adapter
• 1 - USB Type-C to USB Type-C Cable (USB 2.0 Standard)
• 1 - Lens Cap Strap
• 1 - Lens Cleaning Cloth
• 1 - Neck Strap
• 1 - Small Eyecup
• 2 - Batteries
• 1 - Battery Charger
• 1 - Hard Transport Case
• 1 - Lens Cap Front
• 1 - Lens Cap Front and Rear

Features

Interchangeable Lens System
Includes 25° and 6° low-range lenses and a 25° high-range lens to support a wide variety of gas detection requirements.

Versatile Optical Gas Imaging
Capable of detecting CH4, SF6, NH3, and C2H4 using different wavelengths for accurate, reliable detection.

Dual Capability
Performs both optical gas imaging and radiometric thermal inspections with high sensitivity and precision.

Built-In Thermographic Calibration
Measures temperatures between -20°C and 500°C with ±3°C or 3% accuracy.

Advanced Visual Output

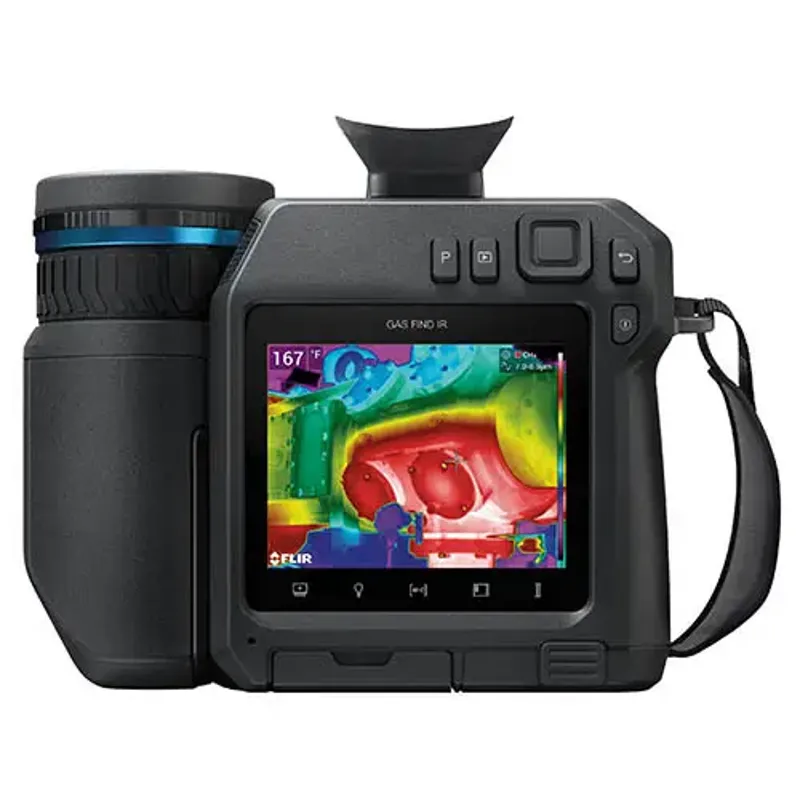

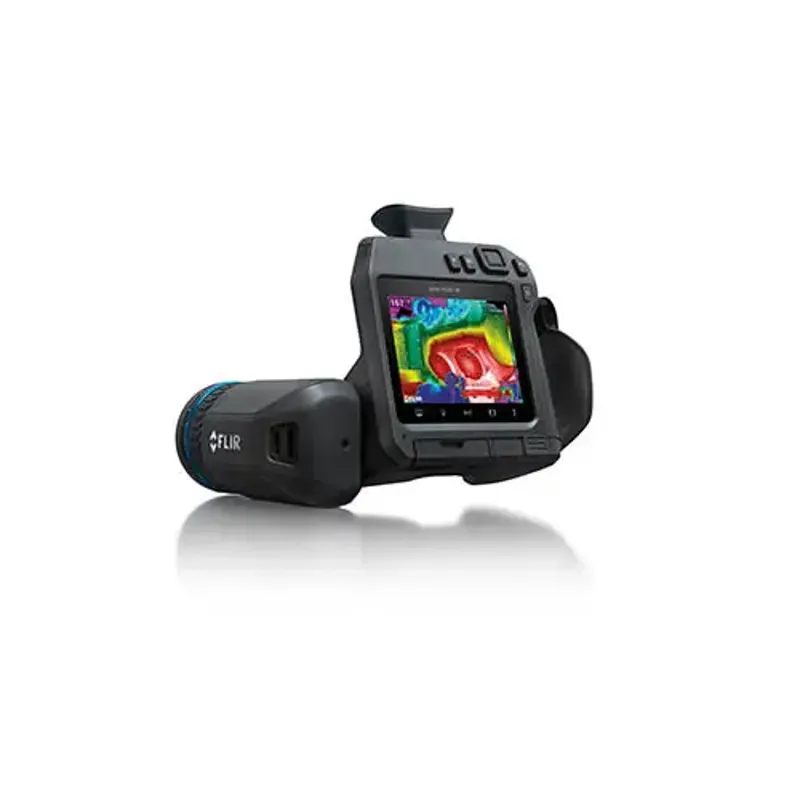

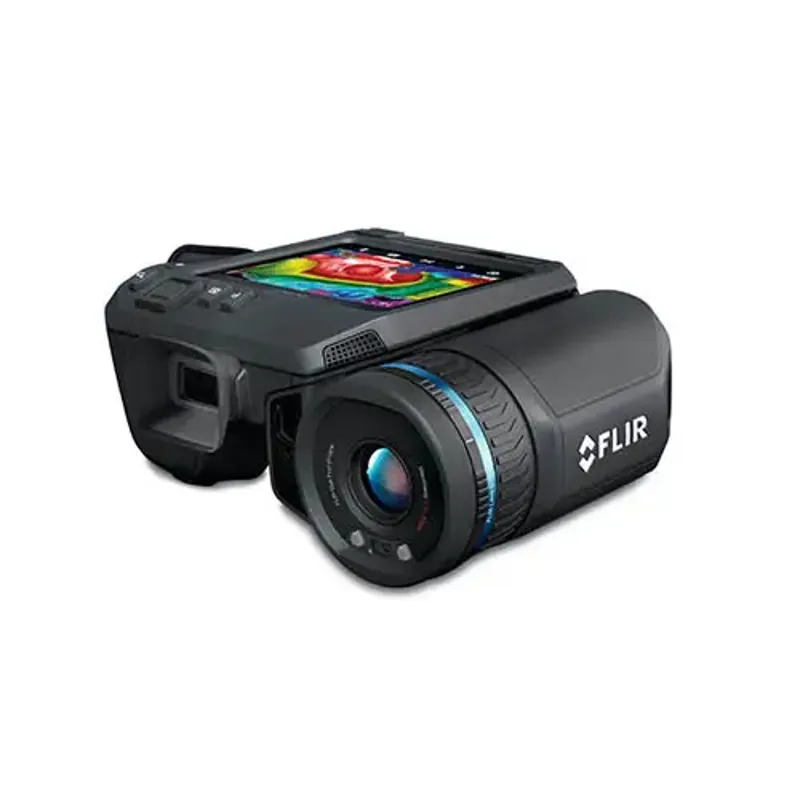

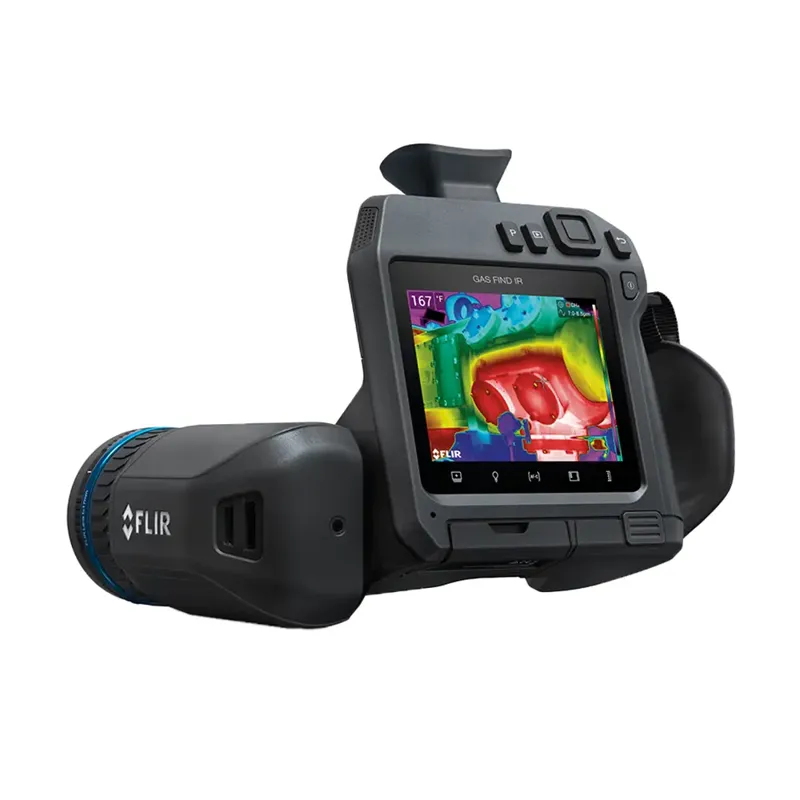

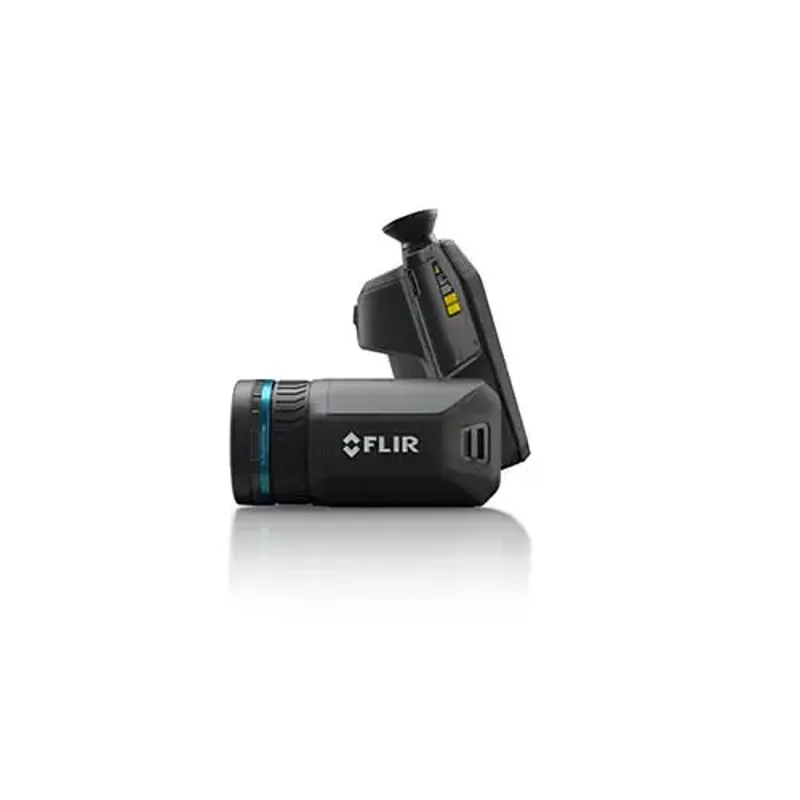

Equipped with a 4-inch LCD touchscreen, 180° rotating optical block, and eyepiece for flexible viewing in all environments.

High Sensitivity Mode
Enhances leak visibility using FLIR’s patented High Sensitivity Mode (HSM) for pinpoint accuracy.

1-Touch Level/Span
Improves contrast on gas visuals instantly with automatic adjustments.

Cloud Connectivity
Syncs with Teledyne FLIR Cloud for automatic backup, sharing, and image storage.

Laser-Assisted Autofocus
Precisely focuses on targets to enhance image clarity and measurement reliability.

Data-Rich Imaging
Supports GPS-tagged imagery and built-in area measurement tools to calculate volumes like tank levels.

Wi-Fi Enabled
Connects directly to mobile devices for seamless reporting and data transfer in the field.

Inspection Workflow Integration
Compatible with optional FLIR Thermal Studio Pro and Route Creator software for route planning and inspection efficiency.

What's Included

Included with Your Purchase:

• 1 - Thermal Imaging Camera with Industrial Gas Detection, 320 x 240, 30 Hz
• 1 - 25° Low-Range Lens
• 1 - 6° Low-Range Lens
• 1 - 25° High-Range Lens
• 1 - Power Supply for Battery Charger
• 1 - Power Supply 15 W/3 A
• 1 - Printed Documentation
• 1 - SD Card (8 GB)
• 1 - USB 2.0 A to USB Type-C Cable
• 1 - USB Type-C to HDMI and PD Adapter
• 1 - USB Type-C to USB Type-C Cable (USB 2.0 Standard)
• 1 - Lens Cap Strap
• 1 - Lens Cleaning Cloth
• 1 - Neck Strap
• 1 - Small Eyecup
• 2 - Batteries
• 1 - Battery Charger
• 1 - Hard Transport Case
• 1 - Lens Cap Front
• 1 - Lens Cap Front and Rear

Specifications

• IR Resolution: 320 x 240 pixels
• Image Frequency: 30 Hz
• Spectral Range: 9.5 µm - 12 µm
• Temperature Measurement Range: -20°C to 500°C
• Temperature Accuracy: ±3°C or ±3%
• Display: 4-inch touchscreen LCD
• Optical Block: 180° rotating
• Connectivity: Wi-Fi, GPS, USB Type-C
• Autofocus: Laser-assisted
• Sensitivity Enhancement: High Sensitivity Mode (HSM)
• Viewfinder: Included for bright environments

FAQ

Q: What gases can the GF77-25-LR-HR-6-LR detect?
A: It can detect CH4, SF6, C2H4, NH3, N2O, SO2, R-134a, R-152a, and other gases using specific interchangeable lenses.

Q: Is this camera suitable for outdoor inspections?
A: Yes, it includes a viewfinder for sunlight conditions and a rugged design suitable for industrial environments.

Q: How accurate are the thermal measurements?
A: The GF77 offers ±3°C or ±3% accuracy across a -20°C to 500°C range.

Q: Can I transfer images wirelessly?
A: Yes, the camera supports Wi-Fi for image transfer and FLIR Cloud integration.

Q: Is any software included?
A: While compatible with FLIR Thermal Studio Pro and Route Creator, these must be purchased separately.

Resources

Documents:

• GF77 Datasheet
