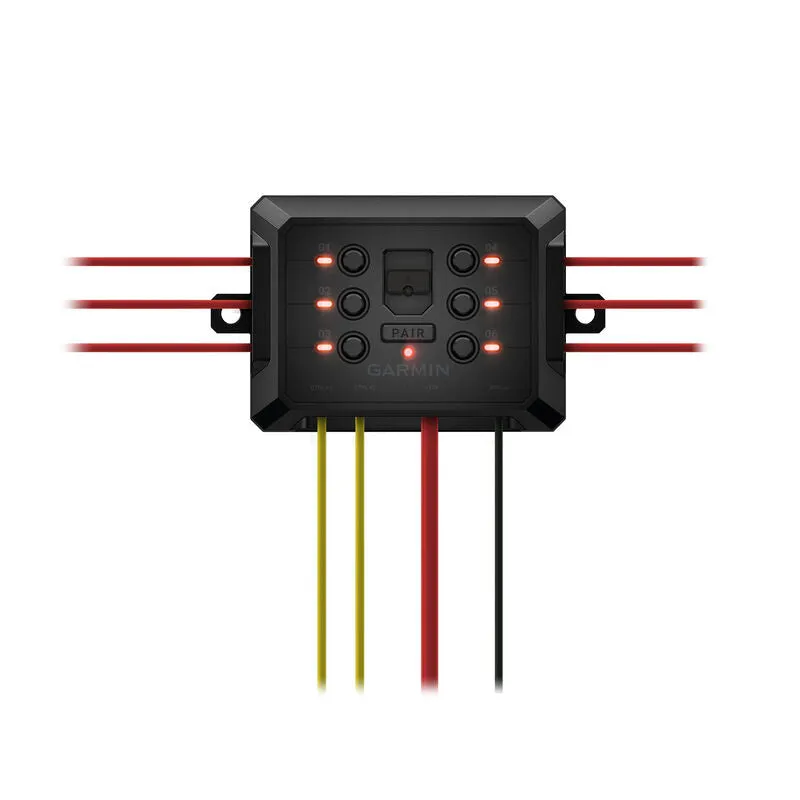

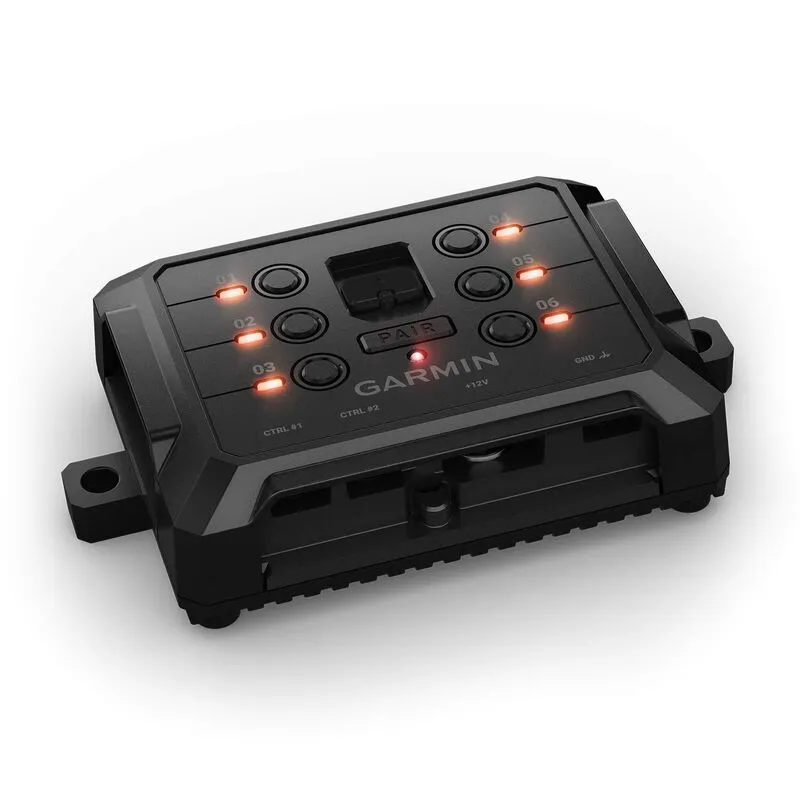

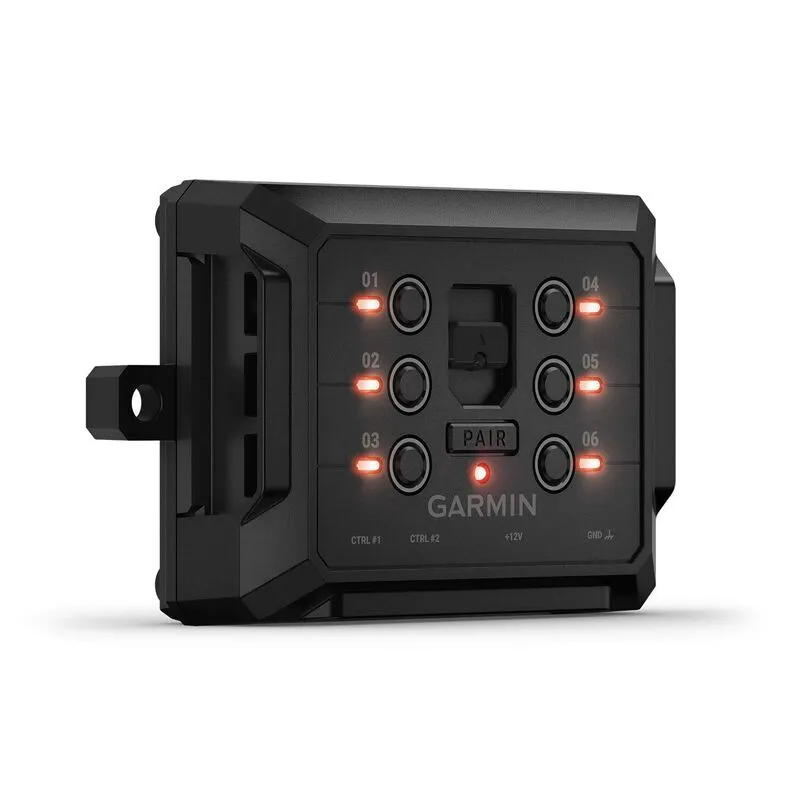

Garmin PowerSwitch is the compact digital switch box that offers convenient centralized control of your vehicle’s 12-volt accessories from a compatible Garmin navigator or smartphone.

The App

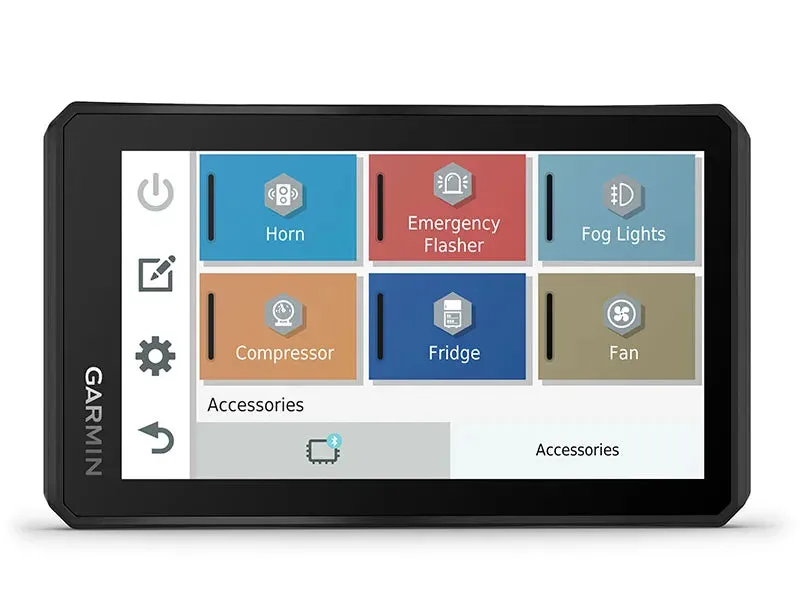

Use the Garmin PowerSwitch app on your compatible Garmin navigator or smartphone to control all your accessories including light bars, horns, air compressors, locks and more from your touchscreen device.

Wireless Switch Control

The Garmin PowerSwitch digital switch box uses BLUETOOTH® wireless connectivity to program and operate your accessories from compatible Garmin navigators or smartphones.

More Control

Control up to four of your Garmin PowerSwitch devices from your compatible Garmin navigator or smartphone.

Install Made Simple

Hassle-free installation lets you connect up to six accessories to one Garmin PowerSwitch box. There’s no interference with your vehicle electronics and no need to cut holes in your dashboard or route wires through the firewall.

Compact for Easy Mounting

The compact 5" x 3" x 1" form factor gives you plenty of flexible mounting options on all types of vehicles, ranging from side-by-sides, UTVs and ATVs to off-roading 4x4s and snowmobiles.

Customize Switches

Create custom virtual switch panels with labels, icons and channel groups on the display as well as controls for dimming and flashing of lighting systems. It’s the simple way to control light bars, rock lights and more.

Ample Outlets

With a total of six circuits rated at up to 30 amps each, you can power and control all types of 12-volt accessories from one Garmin PowerSwitch digital switch box.

Control Inputs

Includes two control inputs that detect a signal from 3.3-volt to 18-volt that can be used to turn on the customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle.

Light it Up

The Garmin PowerSwitch system makes it easy to add all types of exterior lighting packages to your vehicle — everything from light bars and fog lights to emergency flashers and rear and rock lights.

Power Your Adventures

In addition to vehicle lights, you can tap into Garmin PowerSwitch with all types of useful gear: Comm radios, refrigerators, air compressors or virtually anything that can run with 12-volt power.

What's in the Box:

• Garmin PowerSwitch
• Power cable
• Ground cable
• Terminals
• Documentation

  DIMENSION	4.9”W x 1.3”H x 3.0”D (12.5 x 3.2 x 7.5 cm)
  WEIGHT	10 oz (283 g)
  WATERPROOF	IPX7

  Digital Switching Features
  NUMBER OF SWITCH OUTPUTS	6
  MAX AMPS PER SWITCH OUTPUT	30 amps
  MAX AMPS TOTAL	100 amps
  NUMBER OF HARDWIRE INPUTS	2
  MAX NUMBER OF CONTROLLERS* FOR PAIRING WITH A POWERSWITCH DEVICE *CONTROLLER IS DEFINED BY A USER’S SMARTPHONE, MOBILE DEVICE OR COMPATIBLE GARMIN NAVIGATOR (SOLD SEPARATELY)	4
  MAX NUMBER OF POWERSWITCH DEVICES FOR PAIRING WITH A CONTROLLER* *CONTROLLER IS DEFINED BY A USER’S SMARTPHONE, MOBILE DEVICE OR COMPATIBLE GARMIN NAVIGATOR (SOLD SEPARATELY)	4
